LP Series Press

LP Series Press

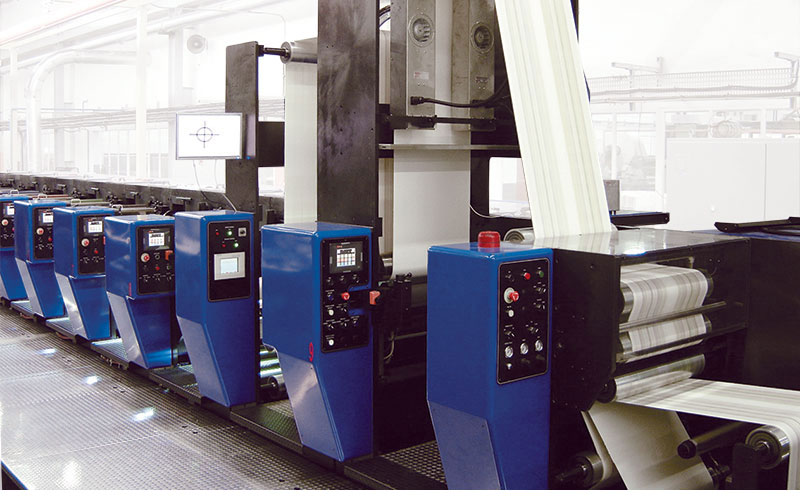

The most technologically advanced machine in CPS’s line-up, the new LP series press targets both short and long run carton printing. This full servo gearless press offers complete automation for high quality printing, improved efficiency, as well as extremely short make-readies. With its functional modular design, the LP series press can easily be extended if additional features are required in the future.

This highly sophisticated machine offers numerous value added options to meet emerging needs in today highly competitive environment. A revolutionary system for liquid packaging and folding carton converting, this robust platform is very ergonomic and easy to operate.

Specifications

  • Web Width - 22", 27", 32" (585mm, 700mm, 825mm
  • Print Repeat - 14" - 30" (350 - 760mm)
    can go larger if necessary
  • Web Thickness - 10 - 30 pt (250 μm - 760 μm
  • Press Speed - 800 f/m (240 m/m
  • Die Cutting - In-line modular rotary or flat bed
  • Drying and Curing - UV or IR or both
  • Control System - Bosch Rexroth

LP Series Features
